Cautions
Thermaltake recommends the following steps to be taken
before using
the
Pacific series radiators and water blocks
- To ensure a clean loop, flush and rinse your radiators and water blocks with distilled water prior to use.
- Do not use tap water or distilled water as your coolant, it may harm your loop and reduce performance.
- It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Coolant 1000. It offers great performance while protecting the entire liquid loop from corrosion.
- Before storing your water cooling components, please clean, rinse and dry. This will ensure a longer lifespan for your components.
Thermaltake recommends the following steps to be taken after completing your water loop
setup
- It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Coolant 1000. It offers great performance while preventing the entire cooling system – copper, brass, nickel, aluminum, and steel – from corrosion.
- Fill the reservoir with coolant and cycle the power on and off several times while the pump pushing the coolant into the loop.
- DO NOT let the pump run dry, when there is no liquid entering the pump turn off your power immediately
- Fill the reservoir to the top as it will prevent air from going into the pump
- If necessary tilt the system slightly from side to side to bleed the air out of the loop.
- Place some paper towels under fittings and joining points to test for leaks.
- Run the loop with the fill port open for about 24 hours to completely bleed the air out of the loop.
- Before starting, flush out your system correctly to prevent any coolant or unwanted particles sticking to your tubes, radiators and other cooling components.
- Coolant might fade over time.

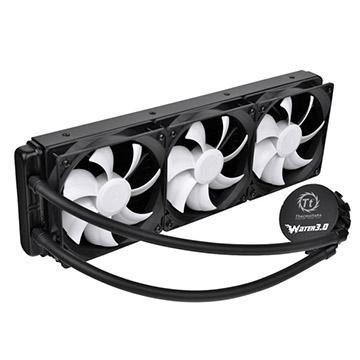

P/N | CL-W007-PL12BL-A |
---|---|
Gewicht | 1.32 kg |
Pump | Motor speed : 3600+-150 RPM Rated Voltage : 12V Rated Current : 325 mA |
Water Block | Material : Copper |
Fan | Dimension : 120 x 120 x 25mm Speed : 1000~2000RPM Noise Level : 20 dBA Rated Voltage : 12V Rated Current : 0.3 A Max. Air Flow : 99 CFM Connector : 4 Pin |
Tube | Length : 326 mm Material : Rubber |
Radiator | Dimension : 393x 120 x 27 mm Material : Aluminum |
Compatibility | Intel LGA 2066/2011-3/2011/1366/1200/1156/1155/1151/1150/775 AMD TR4/AM4/FM2/FM1/AM3+/AM3/AM2+/AM2 *AIO Cooler bracket adapter comes in the AMD Threadripper CPU box. |
