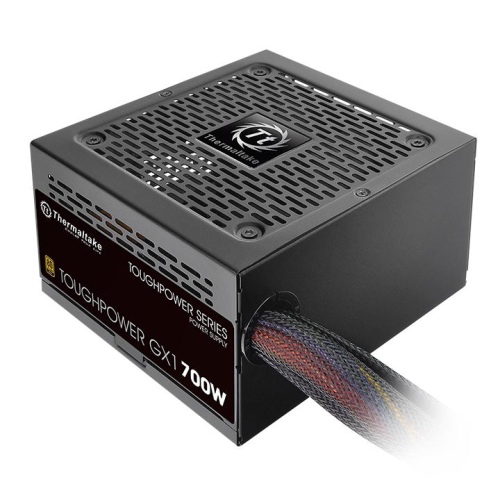

Built to deliver 80 PLUS Gold efficiency, Toughpower GX1 comes with capacities ranging from 500W to 700W, and the application of 120mm Fluid Dynamic Bearing Fan, <±3% tight voltage regulation, Japanese 105°C/221°F main capacitors and premium components. Its near silent operation, trouble free installation and reliable performance are making itself one of the best values for basic system upgrades.
80 PLUS Gold Certified and Intel C6/C7 States Ready
Toughpower GX1 saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
Featuring an 120mm Fluid Dynamic Bearing Fan to keep friction at really low levels even after prolonged usage while guaranteeing
superior cooling performance and silent operation.
The maximum ripple noise is lower than 60mV on the +12V rail, and lower than 40mV on the +5V &+3.3V rails to ensure an excellent
power supply stability. Low ripple noise will keep your performance-critical components, such as high-end graphics cards,
to operate reliably for longer.
The voltage regulation of the PSU is set to no more than ±3% for major rails to meet the highest performance. The strict
voltage regulation is better than Intel’s standard ±5% for major rails and ±10% for -12V.
Sophisticatedly designed exterior shroud stimulates the aesthetic of your power supply while protecting the inner components from a direct contact.
Multiple Connectors
Comes with multiple connectors that power the system at an advantageous voltage and make cable installation an easy task.
Comes with high quality 105 °C (221 ° F) Japanese main capacitor to greatly improve the durability and offer the highest
stability and reliability.
Powerful single +12V rail and DC to DC design ensure a stable and reliable supply to other PC components.
| P/N | PS-TPD-0700NNFAGE-1 |
|---|---|
| watts | 700W |
| RGB Lüfter | Nein |
| Form Faktor | ATX |
| Model | SP-700AH2NCG |
| Typ | ATX 12V v2.4 and EPS v2.92 |
| Max. Output Capacity | 700W |
| Peak Output Capacity | 840W |
| FARBE | Black |
| Dimension ( W / H / D ) | 150mm(W) x 86mm(H) x 140mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | > 12msec at 80% of full load |
| Input Current | 10A max. |
| Input Frequency Range | 47Hz - 63Hz |
| Input Voltage | 100V – 240V~ |
| Operating Temperature | 0°C to + 40°C |
| Operating Humidity | 20% to 90%, non-condensing |
| Storage Temperature | -20°C to + 70°C |
| Storage Humidity | 5% to 95%, non-condensing |
| COOLINg | 12cm fluid dynamic bearing fan |
| Efficiency | Meet 80 PLUS®Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/cTUVus/TUV/FCC/BSMI/EAC/S-Mark |
| PCI-E 6+2pin | 4 |
