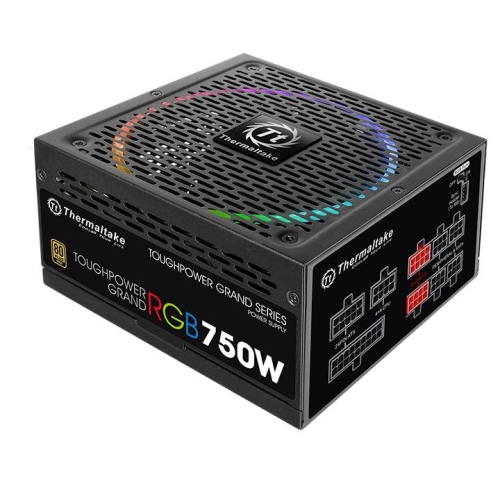

Built to deliver 80 PLUS Gold efficiency, Toughpower Grand RGB Gold (RGB Sync Edition) Series comes with capacities ranging
from 650W to 850W. The preinstalled patented 256-color Riing 14 RGB fan allows 5 lighting modes and built-in memory function,
and permits more custom RGB lighting possibilities thanks to the light synchronization with enthusiasts’ favorite RGB capable
motherboard brands, including ASUS, GIGABYTE, msi, BIOSTAR and ASRock.
Constructed with premium components and ample 10-year warranty, this fully modular member’s near silent operation, trouble
free installation and reliable performance have made itself satisfy the market where users are looking for a stylish power
supply with advanced features and aesthetic appeal.
Simply press the RGB lighting button and enjoy 5 distinctively gorgeous illumination modes: 256-Color RGB Cycle, Solid Red, Green, Blue, White, and a LED Off mode. There is also a built-in memory function to save the color applied and insure the same color selection every time you boot your PC.
With the RGB Sync switch at the back side, it is easy breezy to shift between software/hardware controlled RGB Lighting. Turn the switch on to experience the ultimate RGB lighting compatibility with ASUS Aura Sync, GIGABYTE RGB Fusion, msi Mystic Light Sync, ASRock RGB LED and BIOSTAR Vivid LED DJ-ready motherboards; turn off for hardware controlled lighting modes.
80 PLUS Gold Certified and Intel C6/C7 States Ready
Toughpower Grand RGB Sync Edition saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
Riing 14 RGB Fan features concentrated compression fan blade to enhance static pressure, hydraulic bearings to guarantee silent operation, and the anti-vibration mounting system to strengthen stability. Its in-mold injection anti-vibration rubber pads provide hassle-free usage with 80% protection coverage for all corners.
With Smart Zero Fan starting to operate when the power supply working load goes over 20%, undesired noise will be minimized.
A switch is provided for those who prefer the fan to spin constantly.
All ripples are lower than 30mV for high stability on +12V, +5V, or +3.3V from 0% to 100% load to ensure a high quality power supply. Low ripple noise will keep your performance-critical components, such as high-end graphics cards, to operate reliably for longer.
The voltage regulation is set to no more than ±2% for major rails to meet the highest performance. The strict voltage regulation is better than Intel’s standard ±5% for major rails and ±10% for -12V.
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black
cable makes cable management easier, reduces clutter and increases airflow inside the chassis.
Greatly improves the durability and offers the highest stability and reliability.
Powerful single +12V rail and DC to DC design ensure a stable and reliable supply to other PC components.
| P/N | PS-TPG-0750FPCGEU-S |
|---|---|
| watts | 750W |
| RGB Lüfter | Ja |
| Form Faktor | ATX |
| Model | TPG-750AH3FSGR |
| Typ | ATX 12V v2.4 and EPS v2.92 |
| Max. Output Capacity | 750W |
| Peak Output Capacity | 900W |
| FARBE | Black |
| Dimension ( W / H / D ) | 150mm(W) x 86mm(H) x 160mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | > 16msec at 100% of full load |
| Input Current | 10A |
| Input Frequency Range | 50Hz - 60Hz |
| Input Voltage | 100V – 240V~ |
| Operating Temperature | 0°C to + 50°C |
| Operating Humidity | 20% to 90%,non-condensing |
| Storage Temperature | -40°C to + 70°C |
| Storage Humidity | 20% to 95%, non-condensing |
| COOLINg | 14cm hydraulic bearing fan |
| Efficiency | Meet 80 PLUS®Gold at 115Vac input. |
| MTBF | 120,000 hrs minimum |
| Safety Approval | CE/cTUVus/TÜV SÜD/FCC/CCC/BSMI/EAC |
| PCI-E 6+2pin | 4 |
| Protection | OVP,SCP,OPP,UVP,OTP,OCP |
User Manual
- Dateiname
- Beschreibung
- Größe
- Version
- Release Date
-
Manual
- Multi-language
- 4.8 MB
- 2018-04-30
