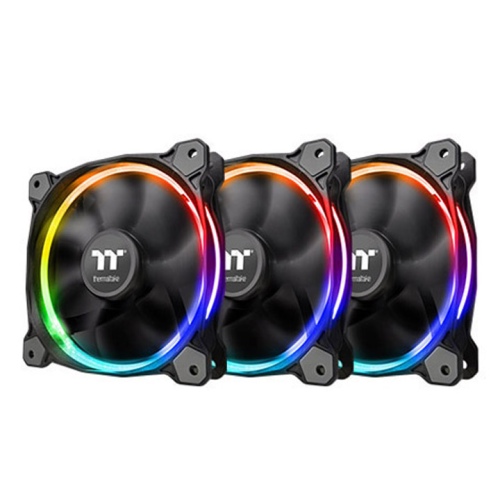

Featuring a patented 256-color LED ring, the high-performance Thermaltake Riing 12 RGB Sync Edition is a powerful, yet silent 120mm radiator fan that is designed to synchronize its lighting with top name motherboards in the market including ASUS Aura Sync, ASRock RGB LED, BIOSTAR Vivid LED DJ, GIGABYTE RGB Fusion and MSI Mystic Light Sync.
*The image is for reference only.
The built-in LED module features great light coverage, uniform color and brightness, and is compatible with
selected motherboard RGB software (ASUS, ASRocK, BIOSTAR, GIGABYTE and MSI).
US Application Patent : US9,506,663
Designed to synchronize with ASUS Aura Sync, ASRock RGB LED, BIOSTAR Vivid LED DJ, GIGABYTE RGB Fusion and MSI Mystic Light Sync, the integrated RGB LED ring supports the motherboards that have a 12V RGB header, allowing you to control the lights directly from the above-mentioned software without installing any extra lighting software or controllers. Visit the support page for motherboard information or to download the software:
*Caution: the motherboard signal connector only supports 12V header.
Exclusively Designed Lighting Control Cables
The included cables are used for connect the fans directly with your motherboard without the need of extra lighting
controllers. Below is the installation guide:
120mm fan with unique 7 blades design is engineered to generate higher air pressure without compromising on
In-mold injection anti-vibration rubber pads provide a hassle-free usage with 80% protection coverage for all
The hydraulic bearing self-lubricates with a high-quality, friction-reducing substance, which lowers operation noise while
improving thermal efficiency. The seal cap prevents lubricant leakage and extends the lifespan of the unit.
|Fan Dimension||120 x 120 x 25 mm|
|Started Voltage||9.0 V|
|Rated Current||0.2 A|
|Rated Voltage||12 V|
|Power Input||2.4 W|
|Fan Speed||800 ~ 1500 R.P.M|
|Max. Air Pressure||0.57 ~ 2.01 mm-H2O|
|Max Air Flow||22.14 ~ 40.6 CFM|
|Noise||18.5 ~ 26.4 dB-A|
|Bearing Type||Hydraulic Bearing|
|Life Expectation||40,000 hrs,25℃|
|Connector||12 V RGB header – 4Pin
2510 - 4Pin
