Thermaltake empfiehlt folgende Hinweise zur Nutzung einer Wasserkühlung zu befolgen.
|
Cautions
Thermaltake recommends the following steps to be taken
before using
the
Pacific series radiators and water blocks
- To ensure a clean loop, flush and rinse your radiators and water blocks with distilled water prior to use.
- Do not use tap water or distilled water as your coolant, it may harm your loop and reduce performance.
- It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Coolant 1000. It offers great performance while protecting the entire liquid loop from corrosion.
- Before storing your water cooling components, please clean, rinse and dry. This will ensure a longer lifespan for your components.
Thermaltake recommends the following steps to be taken after completing your water loop
setup
- It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Coolant 1000. It offers great performance while preventing the entire cooling system – copper, brass, nickel, aluminum, and steel – from corrosion.
- Fill the reservoir with coolant and cycle the power on and off several times while the pump pushing the coolant into the loop.
- DO NOT let the pump run dry, when there is no liquid entering the pump turn off your power immediately
- Fill the reservoir to the top as it will prevent air from going into the pump
- If necessary tilt the system slightly from side to side to bleed the air out of the loop.
- Place some paper towels under fittings and joining points to test for leaks.
- Run the loop with the fill port open for about 24 hours to completely bleed the air out of the loop.
- Before starting, flush out your system correctly to prevent any coolant or unwanted particles sticking to your tubes, radiators and other cooling components.
- Coolant might fade over time.
P/N | CL-W072-CU00BL-A |
---|---|
Dimensions | 97.5(L) x 84 (W) x 289.4 (H) Components Dimension Pump&Reservoir: 97.5(L) x 84 (W) x 289.4 (H) Radiator : 282.5 (L) x 129 (W) x 64 (H) Tube Dimension OD : 3/4” ( 19 mm ) : ID : 1/2”( 13 mm ) |
Gewicht | 5.8 |
Fan | Color:Blue |
Compatibility | Intel LGA 2011/1700/1366/1200/1155/1156/1150/775AMD FM2/FM1/AM4/AM3+/AM3/AM2+/AM2 |
Coolant | Color:Blue |

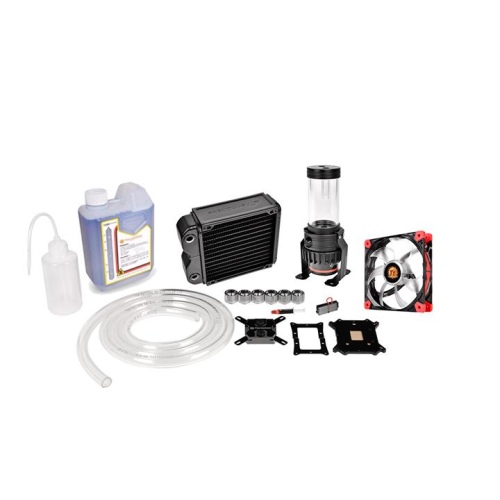

Kit Contents | CPU Water Block - Pacific W1 CPU Water Block x1 Pump/Reservoir - Pacific PR15-D5 Pump/Reservoir Combo x1 Radiator - Pacific RL140 Radiator x1 (182.5 (L) x 140 (W) x 56 (H) ) Fittings - Pacific 1/2'‘(12.7mm) ID x 3/4'‘(19mm) OD Compression (Chrome) x6 Fan - Luna 14 LED Blue Fan x1 Tube - V-tubler 4T 1/2'‘(12.7mm) ID x 3/4'‘(19mm) OD Transparent Tube x2 Meters Coolant - Coolant 1000 Blue 1000cc x1 Accessory - Intel and AMD Universal Backplated & Mounting Kit - 24pin ATX Bridge Tool x1 - Thermaltake Thermal Grease x1 |
