Ultimate overclocking Thermaltake structure design, support up to 230W

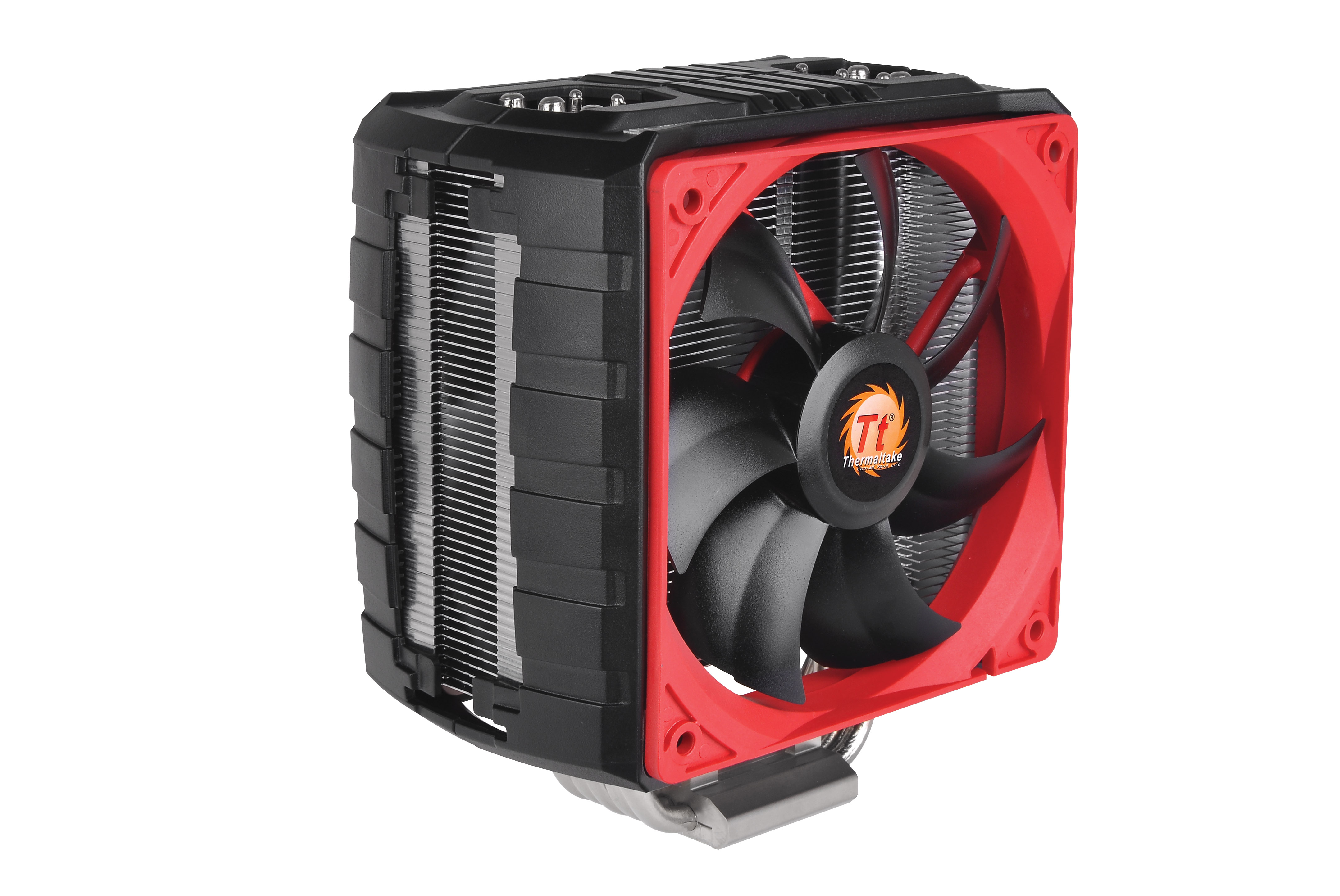

NiC C5 Untouchable CPU Cooler:
Incorporating the proprietary technology, all new Thermaltake NiC series ( lineup consists of the F3, F4, C4, and C5 ), the new CPU cooler series with non-interference cooling space for the ram and motherboard area, the advancement towards silence, performance and compatibility. Fully compatible with RAM of all kinds, ideally for power users to fill their RAM slots with high-end overclocked RAM.



New Standard Non-Interference Cooler
The new NiC Series coolers solve the problem that high performance RAM and CPU coolers cannot co-exist in the past. NiC series coolers achieve the best RAM clearance allowing user to install high end overclock RAM with coolers with ease.





Overclock Design support up to 230W
Heat is conducted from the CPU onto the cooler through the thick nickel coated copper base and then onto the aluminum fins with 5 Φ6mm U-shaped heat-pipes. This ensures the best possible heat dissipation performance conducting heat effectively.



Curved Aluminum Fins
Aluminum fins are specially designed in a curved shape to reduce back air resistance and at the same time maximize airflow through them. The 0.4mm thick aluminum fins also increase the overall thermal dissipation area.



Integrated Dual 120mm VR fans

Both VR fans are contacted to an adjustable fan speed knob where the fans speed can be manually adjusted from 1000 to 2000rpm. A convenient tool-less fan mounting bracket design makes installation easier.


VR Control knob


Universal Socket Compatibility
All-in-one back-plate design, the universal socket offers support all latest Intel and AMD platform.
Mehr Informationen
P/N CLP0608
Compatibility Intel LGA 2066/2011/1366/1155/1156/1150/775
AMD FM2/FM1/AM3+/AM3/AM2+/AM2
Heatsink Material Aluminum Fins
cu base
Copper Heatpipes
Heatpipe Φ6mm x 5 pcs
Fan Dimension 120 x 120 x 25 mm(L xW x H)
Fan quantity 2 pcs
Fan Speed 1000-2000RPM
Rated Voltage 12V
Start Voltage 9V
Rated Current 0.32A
Power Input 3.84W
Air Flow 99.1 CFM
Air Pressure 2.99 MM-H2O
Noise 20 ~39.9 dBA
Life time/Fan Life time 40000 hr
pin connect 3 pin
Cooling Power 230W
Gewicht 811 g
Tweak Town
2019-09-02

+ Performance (incl. overclocking w/a) -   98%

+ Quality including Design and Build    - 100%

+ General Features                                   - 100%



+ Bundle and Packaging                          -  98%

+ Value for Money                                       - 99%

"The Bottom Line: Thermaltake delivers a cooler like no other. Top notch performance, attractive styling, access to everything on it and around it, and it won't drain the bank. Do not pass over the NiC C5, you will definitely missing out!"



<More>
Nikk Tech
2019-09-02

Pros:

+ Build Quality

+ Excellent Performance

+ Design

+ Dual Fan Solution

+ Size

+ CPU Compatibility

+ Price

 "So on one hand we have excellent cooling efficiency, size that does not affect the placement of memory modules, a very good design and a price tag which is not bad at all. On the other hand however we have very high noise levels when both fans are spinning at maximum speed so you need to carefully weigh what you prefer more. Personally when i play games i don't mind the extra noise coming from the tower and since the NiC C5 makes very good use of that without taking up too much space it easily gets our Golden Award."

<More>
Vortez
2019-09-02

Thermaltake have addressed a key issue which many enthusiasts are concerned with – memory clearance. The new NiC C5 does not overhang any of the memory slots on the motherboard and as a result means that a memory kit of any height can be used in conjunction with this cooler. This is great, because it removes any such limitations – low profile memory kits are mandatory for many other CPU coolers which overhang the slots.

<More>
Funky IT
2019-09-02

"Based on everything, I feel the Untouchable is mostly-deserving of its title.  It makes good on its promises and gives you what you'd expect for the price.  That alone is deserving of a passing rating since it's often hard to come by a good cooler that doesn't make you feel like a frivolous or selfish spender for wanting a little extra strength out of your hardware."



<More>
GNWlan
2019-09-02

NiC C5 functions well, clears my RAM sticks, and it’s reasonably priced. My only complaint is that the included fans do not support PWM, so you have to adjust fan speeds yourself with the included fan speed controller. All things considered, I would recommend this heatsink to others.

<More>
Vortez
2019-09-02
Thermaltake’s NiC C5 performed well in all our tests, rivalling even some of the better known CPU coolers many rely upon, furthermore key features like the variable fan controller and complete memory clearance will be certain to help Thermaltake steal the spotlight. <More>
